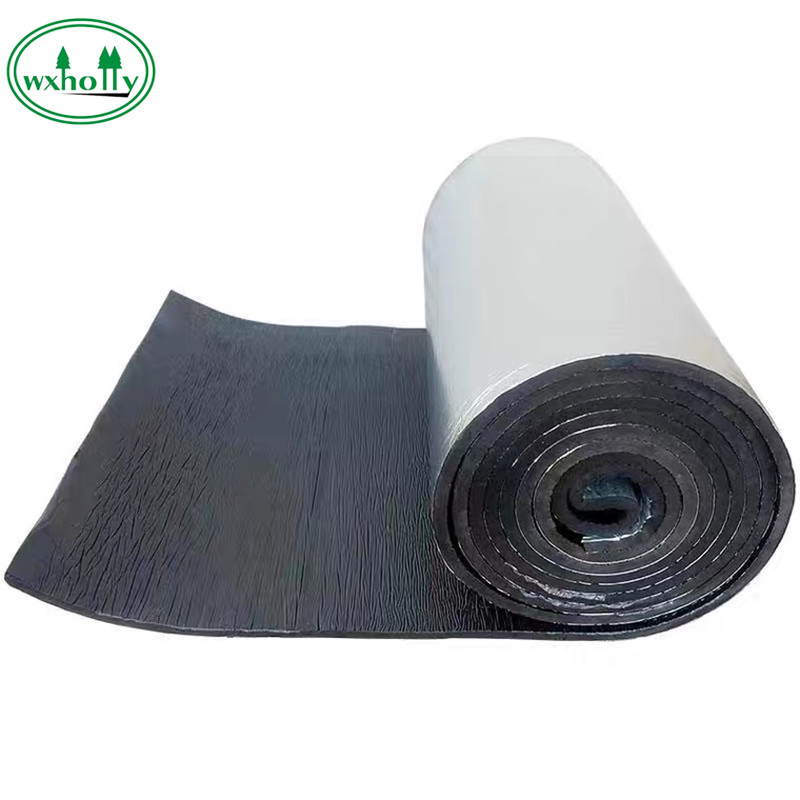

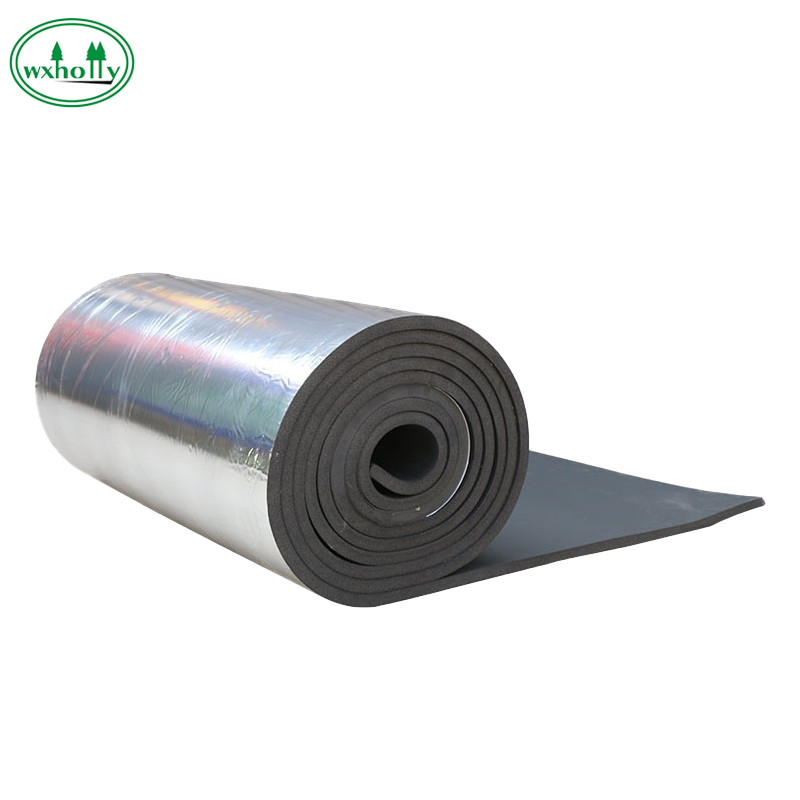

Backed Aluminum Foil Elastic Class B1 3mm Rubber Insulation Roll

Place of Origin Jiangsu,China
Model Number HR-B
Minimum Order Quantity 1 piece
Price USD195-250/m3
Packaging Details PP film inside the rolls to protection the surface,woven bags
Delivery Time 7-15 days after receiving the down payment
Payment Terms T/T, L/C
Supply Ability 2000 m3/month
Product Details
Material NBR/PVC Rubber,aluminum Foil Color Black
Width ≤1200 Mm Environmental Protection Level International E1
Length Customized Thickness 3mm
Flame Retardant Grade B1 Advantages Softness,waterproof,flame Retardant,shock Absorption
Service Temperature Range -40℃~105℃
High Light

3mm insulation roll


3mm Rubber Insulation Roll

Leave a Message
Product Description

Elastic Class B1 Natural Nitrile Rubber Foil Backed Foam Fireproof Insulation Roll

►Product Description


WUXI HOLLY aluminum foil rubber insulation board is a flexible closed foam insulation material made of rubber as the main raw material. The company introduces the latest technology and technology, adopts automated processing, and produces rubber plsatic foam insulation products (PVC/NBR). There is no fiber dust, no formaldehyde, chlorofluorocarbons are widely used in petroleum and petrochemical, electric power, metallurgy, polysilicon, coal chemical industries and other industries, water plants, sewage treatment plants, pools, subways, underground passage concrete joints, etc. Central air conditioning, refrigeration, Sealing and water-stop film.


Although its physical and chemical properties vary depending on the polymer’s composition of nitrile,this form of synthetic rubber is unusual in being generally resistant to oil, fuel, and other chemicals (the more nitrile within the polymer, the higher the resistance to oils but the lower the flexibility of the material).It is used in the nuclear industry to make protective gloves. NBR's ability to withstand a range of temperatures from −40 to 108 °C (−40 to 226 °F) makes it an ideal material for aeronautical applications.Nitrile butadiene is also used to create moulded goods, footwear, adhesives, sealants, sponges, expanded foams, and floor mats.It is used in the automotive and aeronautical industry to make fuel and oil handling hoses, seals, grommets, and self-sealing fuel tanks, since ordinary rubbers cannot be used.





Rubber Insulation Roll
Item Data
Material NBR/PVC rubber,aluminum foil
Density 45-100kg/m³
Surface Smooth or polished/customized
Length Customized
Width ≤1200 mm
Thickness 3-40 mm or customized
Color Black/Customized
Shape Strips, Piece, Sheet, Mat, Roll
Service temperature range -40℃~105℃

Central Air Conditioning Insulation,

Building Insulation etc

Packing PP film inside the rolls to protection the surface, pp/woven bags or according to customer's requests.


1. If customized color, the MOQ is 50 m³

2. Length and width tolerance ± 5mm




1. softness

2. buckling resistance

3. cold & heat resistance

4. flame retardant

5. waterproof

6. low thermal conductivity

7. shock absorption

8. sound absorption

9. Light texture.

10. High-quality water.

11. Moisture-proof




This product can be widely used in the following industries and fields:

  1. Rail Way Insulation
  2. Ship Equipment Grid Generator Insulation
  3. Heavy-Duty Vehicles Insulation
  4. Aerospace Equipment Insulation
  5. Seawater Desalination Insulation
  6. Rooftop Air Conditioning Unit Insulation
  7. Central Air Conditioning Insulation
  8. Building Insulation (roof, wall, floor, cold store, etc)
  9. Textile Industry Insulation
  10. Car roof insulation protection
  11. Defence Industry Insulation
  12. Marine Industry Insulation

Any confusion on your application, welcome to contact us.

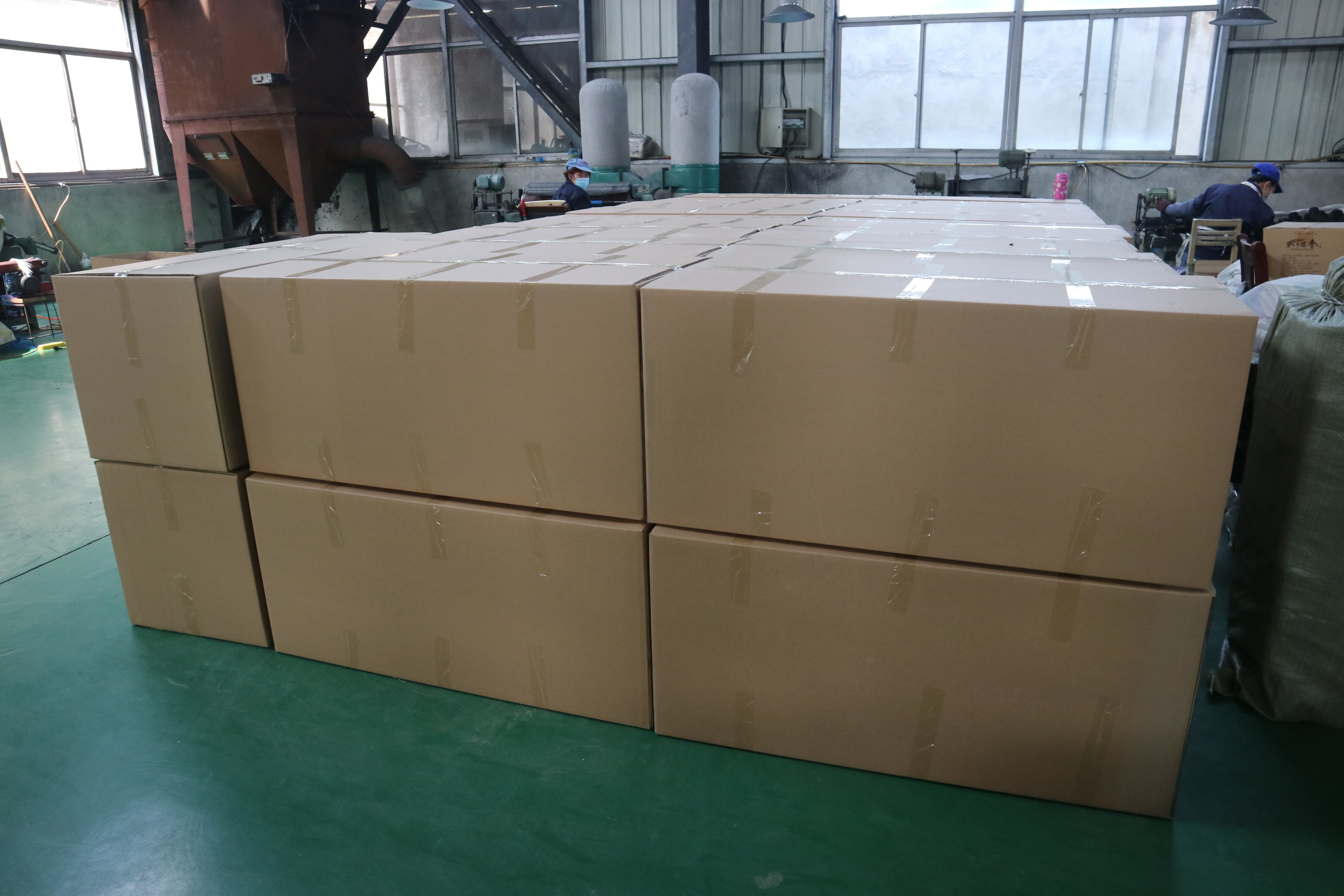

►Packing & Delivery
Backed Aluminum Foil Elastic Class B1 3mm Rubber Insulation Roll 0


1. Why choose you?

Our factory focus on rubber production for more than 13 years with excellent quality control system and a strong ability of supporting services. We cooperate with advanced scientific research institutes to develop new products and new applications. We have our own patents. Our company is clear about a series of export policies and procedures, which will save you a lot of communication time and logistics costs for getting the goods smoothly.


2. Can you provide the sample for free ?
We provide some samples for client, but the express charge should be bore by customer.


3. What's the MOQ (Minimum Order Quantity)?

One piece.


4. How about the Delivery time?

Normally 7-15 days after receiving the down payment.


5. How do you ship the goods and how long does it take to arrive?

We cooperate with professional courier companies such as DHL, UPS, FedEx or TNT. Airline and sea shipping also OK for us.


Product and application real shot




Backed Aluminum Foil Elastic Class B1 3mm Rubber Insulation Roll 1
