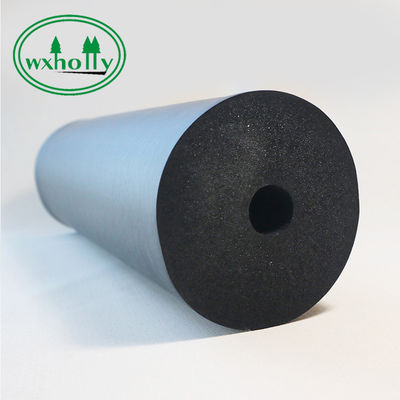

30mm High Density Foam Rubber Tubing For Air Duct Hvac System
Place of Origin | Jiangsu, China |
---|---|
Brand Name | WUXI HOLLY |
Model Number | HR-G |
Minimum Order Quantity | 1 m3 |
Price | USD150-300/m³ |
Packaging Details | Export package or according the customer's requirement |
Delivery Time | 7 to 15 days after receiving the prepayment |
Payment Terms | T/T, L/C |
Supply Ability | 2000 cubic meters per month |
Material | Nbr+pvc、foam | Density | 55-60kg/m3 |
---|---|---|---|
Model Number | Pipe | Thickness | 9,13,20,25,30mm Or Customized |
Application | HVAC/Home/Commercial/Industrail/Construction | Thermal Conductivity | 0.03~0.036W/M*K |
Flame Retardant | B1 | ||
High Light | 30mm high density foam rubber tubing,nbr high density foam rubber tubing,Hvac System Nitrile Rubber Insulation Tube |
Black High Density Rubber Foam Elastomeric Insulation Pipe for Air Duct Hvac System
Air Conditioning High Density Foam Tube NBR Rubber Foam Insulation Pipe
WUXI HOLLY Nitrile Rubber Insulation Tube is a formidable tubing material used in high fuel usage environments.Nitrile tube has a concentration of Acrylonitrile-butadiene making it ideal for oils and solvents. The nitrile tubes are flexible and resilient.With such a high concentration of Nitrile in the composition of the tube, the nitrile rubber tube has limited stretching ability.
Not only are they environmentally friendly, they pose no harm to human health, they have zero Ozone Depletion Potential (ODP),
Global Warming Potential (GWP) of less than five, and a low Volatile Organic Compound (VOC) of less than 6 µg/m2/hr in 24 hours.
The elimination of chlorofluorocarbons (CFC) and hydro chlorofluorocarbons (HCFC) from the production process while complying with LEED requirements make HOLLY NBR Nitrile Flexible Elastomeric Tubes ideal for use in projects that need optimal air conditioning, refrigeration, chilled water pipes, and hot water pipes thermal insulation.
1). Closed cell structure, least moisture intrusion.
2). Low thermal conductivity, big energy saving.
3). Great fire performance, extra safety and protection.
4). CFC/HFC/HCFC free, dust free & fiber free, ideal for green building.
5). Superior flexibility, easy installation.
6). Added UV resistance, great outdoor performance.
water pipe model |
Insulation diameter |
thickness 9mm |
thickness 15mm |
thickness 20mm |
thickness 25mm |
thickness 30mm |
||
Seamless tube | Copper tube | Galvanized pipe | ||||||
1/4" | Φ6 | G09006 | G15006 | G20006 | ||||
3/8" | DN6 | Φ10 | G09010 | G15010 | G20010 | G25010 | ||
1/2" | Φ13 | G09013 | G15013 | G20013 | G25013 | |||
15mm | 5/8" | DN8 | Φ16 | G09016 | G15016 | G20016 | G25016 | |
3/4" | Φ19 | G09019 | G15019 | G20019 | G25019 | |||
22mm | 7/8" | ND15 | Φ22 | G09022 | G15022 | G20022 | G25022 | G30022 |
25mm | 1" | Φ25 | G09025 | G15025 | G20025 | G25025 | G30025 | |
28mm | 1-1/8" | DN20 | Φ28 | G09028 | G15028 | G20028 | G25028 | G30028 |
32mm | 1/1/4" | Φ32 | G15032 | G20032 | G25032 | G30032 | ||
1-3/8" | DN25 | Φ35 | G15035 | G20035 | G25035 | G30035 | ||
38mm | 1-1/2" | Φ38 | G15038 | G20038 | G25038 | G30038 | ||
1-5/8" | DN32 | Φ42 | G15042 | G20042 | G25042 | G30042 | ||
45mm | 1-3/4" | Φ45 | G15045 | G20045 | G25045 | G30045 | ||
1-7/8" | DN40 | Φ48 | G15048 | G20048 | G25048 | G30048 | ||
2-1/8" | Φ54 | G15054 | G20054 | G25054 | G30054 | |||
57mm | 2-1/4" | Φ57 | G15057 | G20057 | G25057 | G30057 | ||
2-3/8" | DN50 | Φ60 | G15060 | G20060 | G25060 | G30060 | ||
Φ67 | G15067 | G20067 | G25067 | G30067 | ||||
76mm | DN65 | Φ76 | G15076 | G20076 | G25076 | G30076 | ||
89mm | DN80 | Φ89 | G15089 | G20089 | G25089 | G30089 | ||
108mm | Φ108 | G25108 | G30108 |
- Softness
- Buckling resistance
- Cold & heat resistance
- Flame retardant
- Waterproof
- Low thermal conductivity
- Shock absorption
- Sound absorption
- Light texture
- Easy to install
- High-quality water
- Moisture-proof
This product can be widely used in the following industries and fields:
Rail Way Insulation
Ship Equipment Grid Generator Insulation
Heavy-Duty Vehicles Insulation
Aerospace Equipment Insulation
Seawater Desalination Insulation
Rooftop Air Conditioning Unit Insulation
Central Air Conditioning Insulation
Building Insulation (roof, wall, floor, cold store, etc)
Textile Industry Insulation
Metallurgy Industry Insulation
Solar Water Heaters Insulation
Any confusion on your application, welcome to contact us.
1, What's the MOQ (Minimum Order Quantity)?
One piece.
2, Can you provide the sample for free ?
We provide some samples for client, but the express charge should be bore by customer.
3, How about the Delivery time?
Normally 7-15 days after receiving the down payment.
4, How do you ship the goods and how long does it take to arrive?
We cooperate with professional courier companies such as DHL, UPS, FedEx or TNT. Airline and sea shipping also OK for us.
5, Are you a manufacturer or a trading company ?
We are a manufacturer .
